Building AI Infrastructure

1From Scripts to Systems

The Problem with Scripts

When you first start coding, you write scripts. A script is a file that does one thing:

# get_sales.py - A script
import supabase

client = supabase.create_client(url, key)
result = client.table("sales").select("*").execute()
print(f"Total sales: {len(result.data)}")

This works! But then you need the same data in another script. So you copy-paste. Now you have two files with the same database connection code. Then you change your Supabase credentials and have to update both files. Then three files. Then ten.

This is how projects become unmaintainable.

What "Infrastructure" Means

Infrastructure is code organized so that:

• Each piece has one job (database access, data processing, user interface)
• Pieces can be reused (the database code works everywhere)
• Changes happen in one place (update credentials once, not ten times)

Think of it like Excel. You don't copy your raw data into every sheet that needs it. You keep the data in one place and reference it. Infrastructure is the same idea applied to code.

The Journey

Script          →  Tool           →  Service         →  System
"It works"         "It's reusable"   "It's organized"   "It scales"

2Working Efficiently with Claude Code

Communication Efficiency

Claude Code is powerful, but it works best when you're clear about what you want.

Be Specific Upfront

Tell It What NOT to Do

Sometimes what you don't want is as important as what you do:

"Fix the data processing logic, but don't change the UI code or the database schema."

"Add error handling to this function, but keep the happy path unchanged."

Reference Existing Patterns

If you already have code that does something similar, point to it:

"Create a new ProductService following the same pattern as ContactService in services/contact_service.py"

Workflow Efficiency

Use Plan Mode for Big Features

Before building anything substantial, ask Claude Code to plan:

"Let's go into plan mode. I want to add a feature that lets users export contacts to CSV. Help me think through the approach before we write code."

Break Large Tasks into Smaller Prompts

Instead of "Build me a complete user authentication system", try a sequence of smaller requests that are each reviewable and testable.

Cost and Speed Efficiency

3Async Basics

Why Async?

When your code calls an API (like Claude or Supabase), it waits for a response. With regular code, your program just... sits there waiting. With async code, your program can do other things while waiting.

The Syntax

async def - Defines a function that can wait for things:

async def get_contact(contact_id: str):
    result = await db.table("contacts").select("*").eq("id", contact_id).execute()
    return result.data[0]

await - Calls an async function and waits for it:

contact = await get_contact("123")

What You Need to Know

1. If a function is defined with async def, you must call it with await
2. You can only use await inside an async def function
3. Pydantic.ai tools are async, so you'll see this pattern a lot

That's it. Claude Code handles the complexity. When you see async and await, just know it's about efficiently waiting for external services.

4Pydantic Models - Structured Data

The Problem Pydantic Solves

LLMs return text. APIs return JSON. Databases return rows. But your code needs structured data—data with a predictable shape.

Without structure:

# What fields does this have? Who knows!
contact = get_contact_from_somewhere()
print(contact["email"])  # KeyError if "email" doesn't exist
print(contact["emal"])   # Typo - fails silently or crashes

With Pydantic:

# Crystal clear what a Contact looks like
class Contact(BaseModel):
    id: str
    name: str
    email: str
    phone: Optional[str] = None

contact = Contact(**data)  # Validates immediately
print(contact.email)  # Autocomplete works, typos caught by editor

Defining Models

from pydantic import BaseModel
from typing import Optional
from datetime import datetime

class Contact(BaseModel):
    id: str
    name: str
    email: str
    phone: Optional[str] = None  # Optional with default
    created_at: datetime
    notes: str = ""  # Optional with default empty string

Using Models with LLMs (Structured Outputs)

This is where Pydantic really shines with AI. Instead of getting messy text from an LLM, you can get structured data:

from pydantic_ai import Agent

class ContactSummary(BaseModel):
    name: str
    key_points: list[str]
    suggested_action: str

agent = Agent(
    "anthropic:claude-sonnet-4-5-20250929",
    result_type=ContactSummary  # LLM must return this structure
)

result = await agent.run("Summarize this contact: [contact details]")
# result.data is a ContactSummary, not raw text
print(result.data.suggested_action)

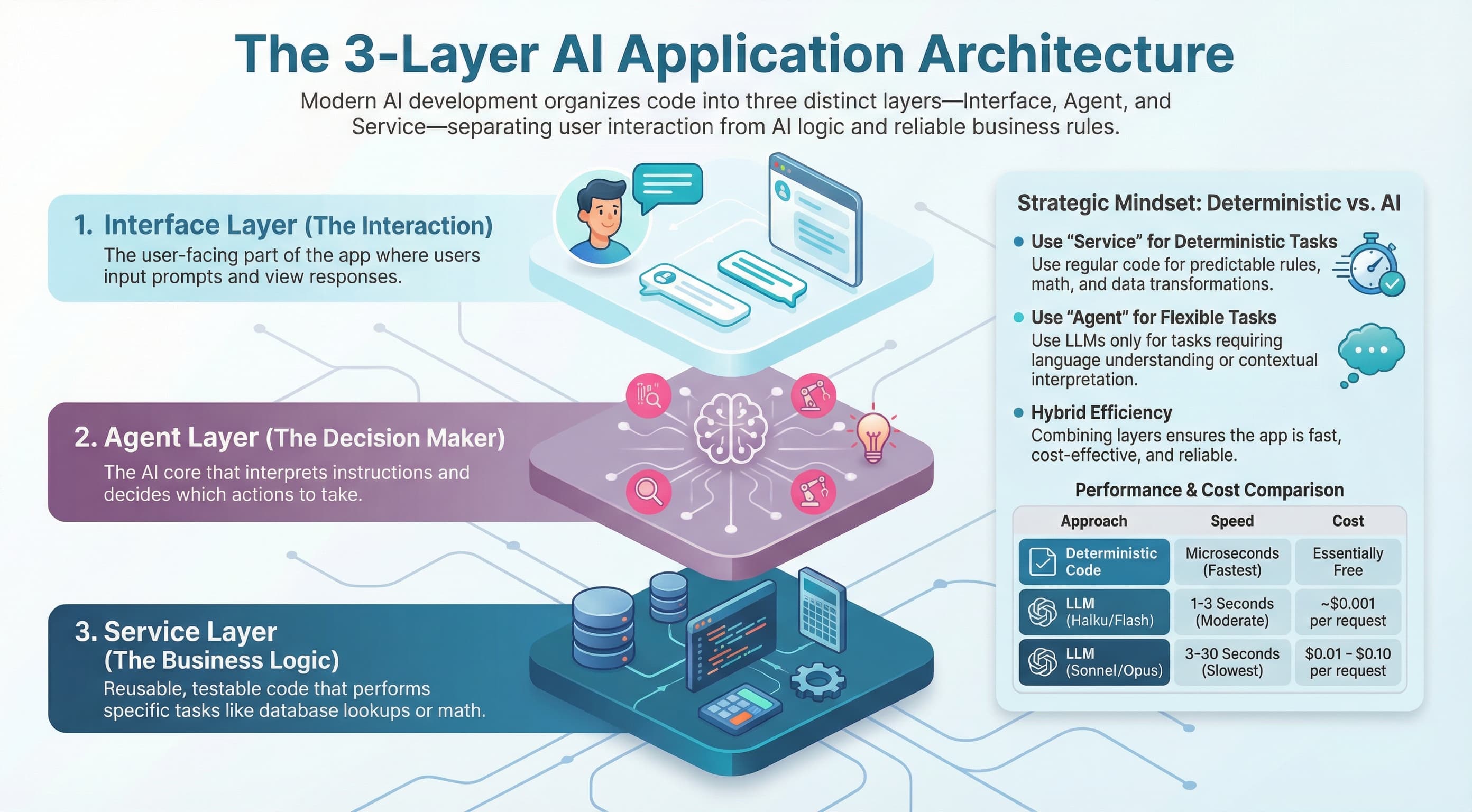

5The 3-Layer Architecture

What Each Layer Does

Why Separation Matters

Reusability

Your ContactService can be used by the Streamlit UI, an API endpoint, an AI agent, a CLI tool, and scheduled jobs. Write the logic once, use it everywhere.

Testability

Services are deterministic—same input, same output. You can test them without involving AI or UI:

def test_contact_service():
    service = ContactService(mock_db)
    contact = service.create_contact(name="Test", email="test@example.com")
    assert contact.name == "Test"

Maintainability

Need to change how contacts are stored? Update the service. The UI and agents don't change. Need a new UI? Build it. The services and agents stay the same.

6Services - Your Business Logic

What Belongs in a Service?

Put logic in a service when it:

• Touches the database
• Calls an external API
• Performs business calculations
• Should be reusable across your app

Service Structure Pattern

# services/contact_service.py

from typing import Optional
from datetime import datetime, timedelta
from supabase import Client
from models import Contact

class ContactService:
    """Service for contact management operations."""

    def __init__(self, db: Client):
        self.db = db

    def get_contact(self, contact_id: str) -> Optional[Contact]:
        """Get a single contact by ID."""
        result = self.db.table("contacts").select("*").eq("id", contact_id).execute()
        if not result.data:
            return None
        return Contact(**result.data[0])

    def create_contact(self, name: str, email: str, phone: Optional[str] = None) -> Contact:
        """Create a new contact."""
        data = {
            "name": name,
            "email": email,
            "phone": phone,
            "created_at": datetime.now().isoformat()
        }
        result = self.db.table("contacts").insert(data).execute()
        return Contact(**result.data[0])

Key Principles

Dependencies are Injected

Don't create the database client inside the service. Pass it in:

# Good - dependency injected
class ContactService:
    def __init__(self, db: Client):
        self.db = db

# Bad - creates its own dependency
class ContactService:
    def __init__(self):
        self.db = create_client(url, key)  # Hard to test!

Return Pydantic Models

Always return typed data, not raw dictionaries. This gives you autocomplete, validation, and self-documenting code.

7Thin Tools - The Bridge to AI

The Thin Tools Rule

Tools call services. Tools don't contain logic.

# ✅ CORRECT: Tool is thin, calls service
@agent.tool()
async def get_recent_contacts(
    ctx: RunContext[AgentDependencies],
    days: int = 7
) -> list[Contact]:
    """Get contacts created in the last N days."""
    return ctx.deps.contact_service.get_recent_contacts(days)


# ❌ WRONG: Tool contains business logic
@agent.tool()
async def get_recent_contacts(
    ctx: RunContext[AgentDependencies],
    days: int = 7
) -> list[Contact]:
    # Don't do this! Logic belongs in service
    cutoff = datetime.now() - timedelta(days=days)
    result = ctx.deps.db.table("contacts").select("*").gte("created_at", cutoff.isoformat()).execute()
    return [Contact(**row) for row in result.data]

Why This Matters

If logic is in the tool, you can only use it through the agent.

If logic is in the service, you can use it through the agent (via tool), through the UI (directly), through the API (directly), in tests (directly), and in scheduled jobs (directly).

Tool Docstrings Matter

The LLM reads tool docstrings to decide when to use each tool. Be clear and specific:

@agent.tool()
async def search_contacts(
    ctx: RunContext[AgentDependencies],
    query: str
) -> list[Contact]:
    """
    Search for contacts by name or email.

    Use this when the user wants to find specific contacts based on
    a search term. The search is case-insensitive and matches partial
    names or email addresses.

    Args:
        ctx: Agent context with dependencies
        query: Search term to match against name or email

    Returns:
        List of matching contacts, empty if none found
    """
    return ctx.deps.contact_service.search(query)

8Pydantic.ai Essentials

Creating an Agent

from pydantic_ai import Agent
from agent.dependencies import AgentDependencies

contact_agent = Agent(
    "anthropic:claude-sonnet-4-5-20250929",
    deps_type=AgentDependencies,
    system_prompt="""You are a helpful contact management assistant.

    You can help users:
    - Find contacts by searching names or emails
    - View recent contacts
    - Get summaries of contact information

    Always be concise and helpful."""
)

AgentDependencies

Dependencies are how tools access services. It's a class that holds all the services an agent might need:

# agent/dependencies.py

from dataclasses import dataclass
from services.contact_service import ContactService
from core.database import get_supabase_client

@dataclass
class AgentDependencies:
    """Container for all services available to agent tools."""
    contact_service: ContactService

    @classmethod
    def create(cls) -> "AgentDependencies":
        """Factory method to create dependencies with real services."""
        db = get_supabase_client()
        return cls(contact_service=ContactService(db))

Running an Agent

import asyncio
from agent.contact_agent import contact_agent
from agent.dependencies import AgentDependencies

async def main():
    deps = AgentDependencies.create()

    result = await contact_agent.run(
        "Show me all contacts from last week",
        deps=deps
    )

    print(result.data)

asyncio.run(main())

9Prompt Engineering Basics

System Prompts

system_prompt="""You are a contact management assistant for a sales team.

Your primary responsibilities:
- Help users find and manage their contacts
- Provide quick summaries of contact information
- Suggest follow-up actions based on contact history

Guidelines:
- Be concise - sales people are busy
- Always confirm before deleting anything
- If a search returns no results, suggest broadening the search
- Format contact lists as bullet points for easy scanning

You have access to tools for searching, viewing, and managing contacts.
Use them based on what the user needs."""

What to Include

Iteration Process

Prompts rarely work perfectly the first time. Iterate:

1. Write initial prompt
2. Test with real queries
3. Observe what goes wrong
4. Refine the prompt
5. Repeat

10Deterministic vs. Agent Decision-Making

When to Use Deterministic

When to Use Agent-Driven

The Cost Reality

11CLAUDE.md for Real Projects

Efficiency Rules

## Efficiency Rules

### Don't Duplicate
- Before creating a new function, check if similar functionality exists
- Before creating a new table, check the existing schema
- Prefer extending existing code over creating new files

### Check Before Creating
- Run `grep -r "function_name" .` to check if something exists
- Check Supabase schema before adding tables or columns
- Review similar files before creating new ones

### Ask Before Big Changes
- Ask before major refactors
- Ask before changing database schemas
- Ask before adding new dependencies

Refactoring Guidance

## Refactoring Guidelines

### When to Refactor
- Files over ~200 lines → consider splitting
- Functions over ~50 lines → consider breaking down
- Same code in multiple places → extract to shared function
- Hard to find things → reorganize

### How to Refactor
Ask: "This file is getting large. Help me refactor it into smaller,
focused modules while maintaining the same functionality."

Checkpoints

## Checkpoints

Long conversations lose context. Save progress regularly.

### When to Checkpoint
- After completing a major feature
- Every ~50K tokens (Claude will estimate)
- Before starting a different area of work

### How to Checkpoint
Ask: "Save a checkpoint of our progress to docs/checkpoints/"

12Security Essentials

Never Commit API Keys

API keys in your code = API keys stolen.

# .env (never committed)
ANTHROPIC_API_KEY=sk-ant-xxxxx
SUPABASE_URL=https://xxx.supabase.co
SUPABASE_KEY=your-key-here

# .gitignore (always committed)
.env

# In your code
import os
from dotenv import load_dotenv

load_dotenv()
api_key = os.getenv("ANTHROPIC_API_KEY")

Security Checklist

• .env is in .gitignore
• No API keys in code files
• User input is validated
• Database queries use parameters (not string concatenation)
• LLM output is validated before use
• Error messages don't expose sensitive details

13Troubleshooting & Debugging

Reading Error Messages

The most important line is usually last:

Traceback (most recent call last):
  File "app.py", line 42, in main
    result = process_data(data)
  File "processor.py", line 15, in process_data
    return data["email"]
KeyError: 'email'                    ← THIS is the actual problem

Error Handling & Retries

import time

async def call_agent_with_retry(prompt: str, max_retries: int = 3):
    for attempt in range(max_retries):
        try:
            return await agent.run(prompt, deps=deps)
        except Exception as e:
            if attempt == max_retries - 1:
                raise  # Give up after max retries
            print(f"Attempt {attempt + 1} failed: {e}. Retrying...")
            time.sleep(2 ** attempt)  # Exponential backoff

Setting Up Logfire MCP

Logfire MCP lets Claude Code access your application logs directly. Ask Claude Code:

"Help me install and configure the Logfire MCP server so you can access my application logs and help me debug issues."

The Debugging Prompt Template

Here's the error:
[paste the full error message]

Here's what I was trying to do:
[explain the goal]

Here's the relevant code:
[paste the code section]

Here's a screenshot (if relevant):
[attach or reference file]

What I've already tried:
[list attempts]

Common Issues and Fixes

14Hands-On Project - Contact Manager

Project Structure

contact-manager/
├── CLAUDE.md                    # Development guidelines
├── .env.example                 # Environment template
├── .gitignore
├── requirements.txt
├── contact_manager/
│   ├── __init__.py
│   ├── models.py                # Pydantic models
│   ├── core/
│   │   ├── config.py            # Configuration
│   │   └── database.py          # Supabase client
│   ├── services/
│   │   └── contact_service.py   # Business logic
│   ├── agent/
│   │   ├── dependencies.py      # AgentDependencies
│   │   └── contact_agent.py     # Agent + tools
│   └── ui/
│       └── app.py               # Streamlit interface
└── docs/
    └── checkpoints/             # Progress checkpoints

Step-by-Step Build

Use these prompts with Claude Code to build each piece:

Step 1: Project Setup

Step 2: Pydantic Models

Step 3: Database Setup

Create the table in Supabase SQL Editor:

CREATE TABLE contacts (
    id UUID PRIMARY KEY DEFAULT gen_random_uuid(),
    name TEXT NOT NULL,
    email TEXT NOT NULL,
    phone TEXT,
    notes TEXT DEFAULT '',
    created_at TIMESTAMPTZ DEFAULT NOW(),
    updated_at TIMESTAMPTZ DEFAULT NOW()
);

CREATE INDEX idx_contacts_email ON contacts(email);

Steps 4-9: Continue Building

Continue with prompts for: ContactService (Step 4), AgentDependencies (Step 5), ContactAgent with tools (Step 6), Streamlit UI (Step 7), Logfire monitoring (Step 8), and Railway deployment (Step 9).

15What's Next?

You now have a solid foundation: the 3-layer architecture, reusable services, agents with thin tools, and the judgment to choose between AI and deterministic code.

Where to Go From Here

Keep Building

The best way to learn is to build things. Ideas:

• Add more features to your Contact Manager
• Build a second agent for a different domain
• Connect your system to external APIs
• Create dashboards and reports

Every project teaches you something new. You now have the patterns—go apply them.
